Product Description
1/4" Drive Extending Ratchet with Locking Flex-Head – Britool Hallmark SREF170
Professional 72-Tooth Telescopic Ratchet – Extends from 173mm to 223mm
The Britool Hallmark SREF170 1/4" Drive Extending Ratchet with Locking Flex-Head is a professional-quality compact ratchet designed to provide adjustable leverage, excellent accessibility and precise control when working with smaller fasteners.
The telescopic handle extends from 173mm to 223mm, allowing the ratchet to remain compact when working in confined spaces or extend by 50mm when additional reach and leverage are required.
A versatile 180° pivoting flex-head locks into 10 different positions, allowing the handle to be positioned at the most practical working angle while remaining securely locked during use.
Combined with a 72-tooth fine ratchet mechanism requiring just 5° of handle movement and a convenient push-button safety socket release, the SREF170 is an exceptionally versatile 1/4" drive ratchet for automotive, motorcycle, mechanical and engineering applications.
Key Features
- Professional-quality 1/4" drive extending ratchet
- Britool Hallmark part number SREF170
- Telescopic handle extends from 173mm to 223mm
- 50mm extension range
- Adjustable handle provides increased leverage and reach when required
- Quick-release mechanism for extending the shaft
- 180° pivoting flex-head
- Head locks securely into 10 different positions
- 72-tooth fine ratchet mechanism
- Fine 5° working arc
- Push-button safety socket release
- Compact dimensions for restricted working areas
- Excellent control when working with smaller fasteners
- Ideal for automotive, motorcycle and precision mechanical applications
- Professional-quality Britool Hallmark hand tool

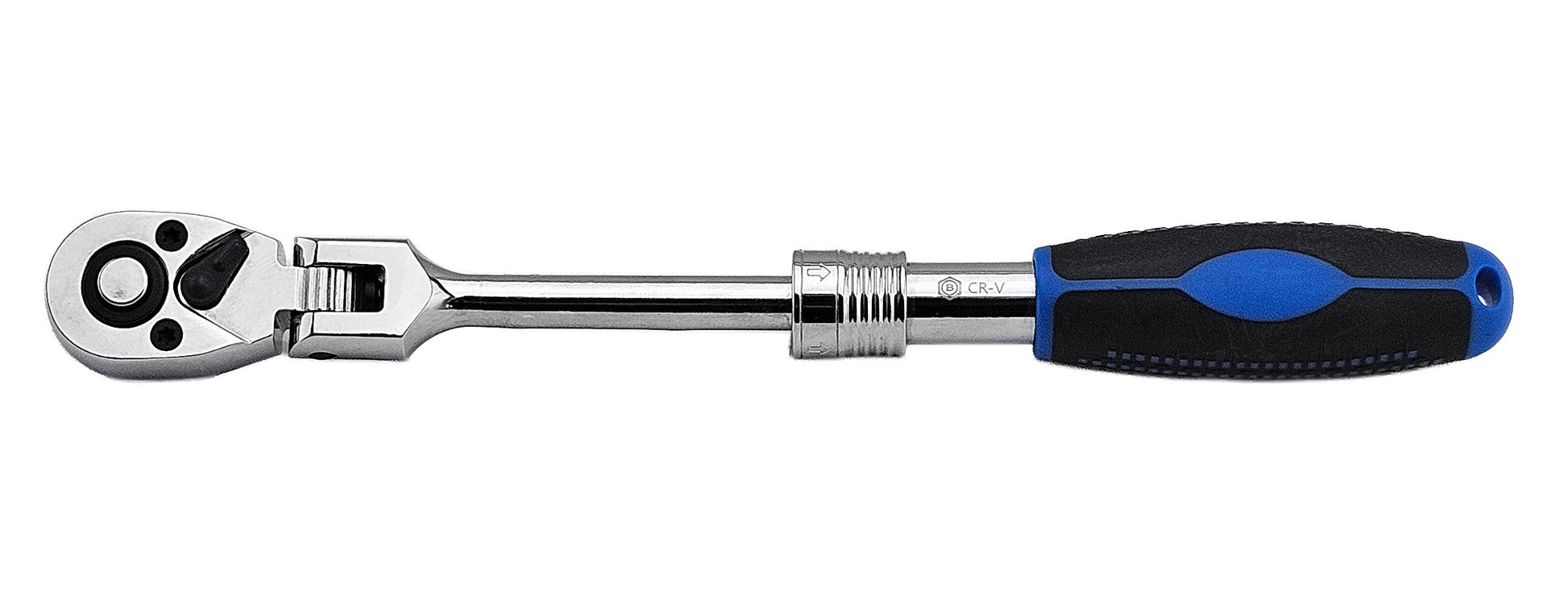

Extending 173–223mm Telescopic Handle
The SREF170 features an adjustable telescopic handle that extends from 173mm to 223mm.
At its shortest 173mm setting, the ratchet remains compact and easy to manoeuvre, making it particularly useful when access around the fastener is limited.
When additional leverage or reach is required, the handle can be extended up to 223mm.
Increasing the effective handle length provides greater mechanical leverage, allowing additional turning force to be applied with less effort compared with using the ratchet in its fully retracted position.

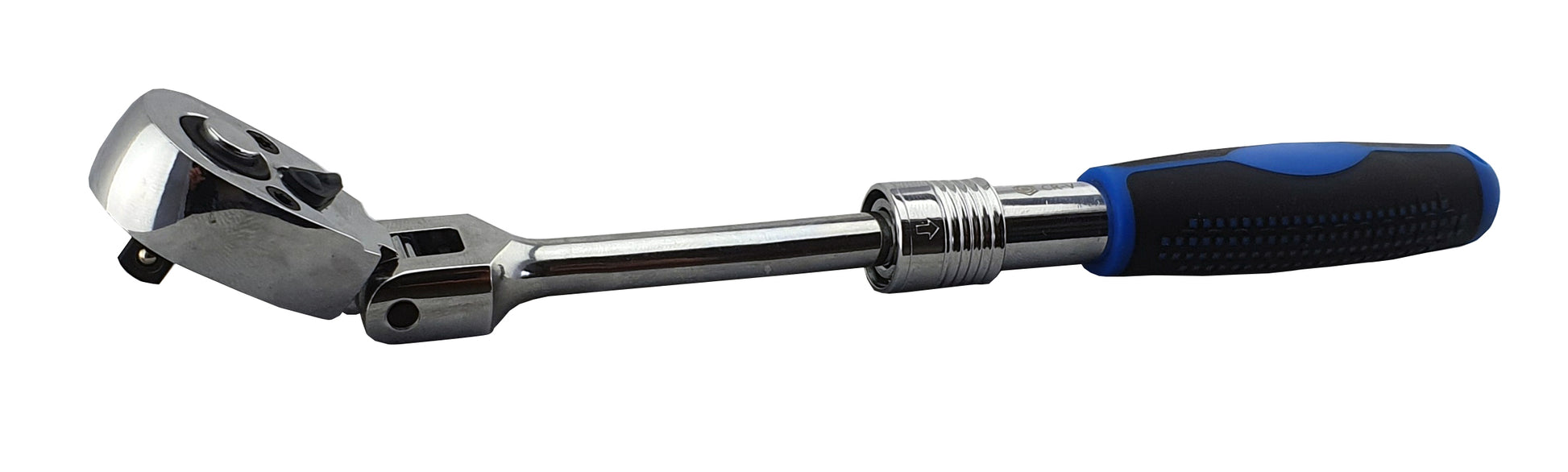

180° Locking Flex-Head with 10 Positions
The ratchet head pivots through 180° and locks into 10 different positions, providing considerably greater flexibility than a conventional fixed-head ratchet.
The adjustable head allows the handle to be positioned around surrounding components and at more convenient working angles when direct access to a fastener is difficult.
Unlike a free-moving flex-head, the locking mechanism securely holds the selected angle during use, providing greater control when applying force.
This is particularly useful for working in engine bays, motorcycle assemblies, dashboards and other tightly packed mechanical areas.
72-Tooth Fine Ratchet Mechanism
The SREF170 features a 72-tooth fine ratchet mechanism requiring just 5° of handle movement between engagements.
The small working arc is especially useful in confined spaces where there may not be sufficient room to swing a conventional ratchet handle through a larger angle.
Combined with the adjustable flex-head, this makes the SREF170 particularly effective for accessing small fasteners in awkward or restricted locations.
Push-Button Safety Socket Release
A convenient push-button safety socket release securely retains the socket on the 1/4" square drive during use.
Pressing the release button allows sockets to be quickly removed and replaced, making frequent socket changes faster and easier during servicing and assembly work.
Compact & Versatile 1/4" Drive Format
The 1/4" square drive makes the SREF170 particularly suitable for smaller fasteners and precision applications where larger 3/8" or 1/2" drive tools may be unnecessarily bulky.
Its combination of a compact drive size, extending handle and locking flex-head makes it especially useful for engine bay work, motorcycle repairs, interior automotive work and general mechanical assembly.
Technical Specifications
Brand: Britool Hallmark
Part Number: SREF170
Tool Type: Extending / Telescopic Flex-Head Ratchet Wrench
Drive Size: 1/4" Square Drive
Minimum Length: 173mm
Maximum Length: 223mm
Extension Range: 50mm
Head Movement: 180°
Locking Head Positions: 10
Ratchet Mechanism: 72 Tooth
Working Arc: 5°
Socket Release: Push-Button Safety Release
Handle: Extendable / Telescopic
Operation: Manual
Application: Automotive, motorcycle, mechanical, engineering and workshop use
Typical Applications
The Britool Hallmark SREF170 is ideal for:
- Automotive servicing and repairs
- Engine bay work
- Motorcycle maintenance
- Dashboard and interior repairs
- Small engine repairs
- Electrical and mechanical components
- Precision mechanical work
- Assembly and maintenance
- General engineering applications
- Garage and workshop use
- Small fasteners in confined spaces
- Applications requiring adjustable reach and leverage
Compatible with 1/4" Drive Sockets
The standard 1/4" square drive makes the SREF170 compatible with a wide range of suitable 1/4" drive sockets and accessories.
Its adjustable handle and locking flex-head provide additional versatility compared with a conventional fixed-length 1/4" drive ratchet.
The ratchet is laser marked with the famous Hallmark logo.
EAN: 5060960271105.
Repair kit available SREF170/RK
The HALLMARK range was developed by Britool in the 80's for the automotive aftermarket. it has been the professional’s choice ever since. Each tool is marked with the Britool hallmark
, your guarantee of quality.
The Britool Hallmark guarantee covers against defective materials and/or workmanship when used for the purpose for which they were designed. In the unlikely event that a product fails during normal use, it will be repaired or replaced. The guarantee does not extend to fair wear & tear or moving parts such as ratchet mechanisms.
